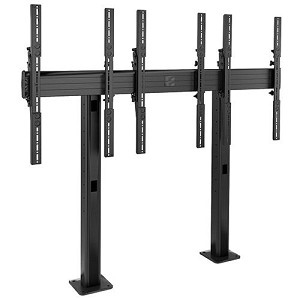

Chief's FUSION Bolt-Down freestanding solution makes it possible to construct video walls in prominent locations for permanent applications.
Screen array configuration: 3 screens wide x 1 screen high in portrait
Features
3 x 1 portrait screen arrangement for 42 - 46" screens. Larger displays possible with FCAX brackets, use MountFinder to confirm compatibility
Easily align displays with independent height, plumb and lateral shift adjustment
Bolt-down solution allows for a permanent solution
Integrated cable management for a clean installation
TAA Compliant
Specifications
Center of Display to Floor/Table Range: | 17.38" (441 mm) - 64.38" (1635 mm) |
---|
Certifications: | UL Listed |
---|
Color: | Black |
---|
Lateral Shift: | Yes |
---|
Manual Height Adjustment: | Micro-adjustment up to 0.75" (19 mm) per screen |
---|
Mounting Pattern Compatibility (Universal Versions): | any width x 100 mm - 800 mm |
---|
Notes: | TAA Compliant |
---|
Orientation: | Portrait |
---|
Overall Dimensions (H x W x D): | 80.6" x 68.0" x 9.61" (2047 x 1727 x 244 mm) |
---|
Plumb Adjustment: | Micro-adjustment up to 0.75" (19 mm) |
---|
Screen Array Configuration: | 3 x 1 |
---|
Shipping Weight: | 165.00 lbs |
---|
Solution Type: | Universal |
---|
Typical Screen Sizes: | 42 - 46" (Larger displays possible with FCAX brackets, use MountFinder to confirm compatibility) |
---|
Weight Capacity: | 125 lbs. (56.7 kg) per screen |
---|
