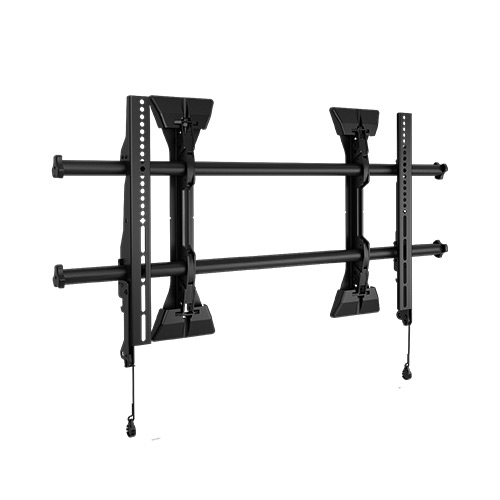

Chief LTM1U FUSION Large Micro-Adjustable Tilt TV Wall Mount

Write a Review

Price: $321.46

Manufacturer Part#: LTM1U

Availability: In Stock for Immediate Shipping

Quantity

Product Information
Product Features
Surface Description
Product Quick Links

LSM1U

Large Fusion Micro-Adjustable Fixed Wall Display Mount

Chief upgraded fixed wall mounts based on installer feedback and direct observations of installers in the field. Many new features join Fusion favorites like Centerless shift, ControlZone leveling adjustment and ClickConnect Latching.

New benefits included added stability, faster install, improved lateral shift, easier cable management and enhanced security.

Installer-inspired Fusion fixed mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.

Features

Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall
ControlZone Leveling for post-installation fine tuning of height and leveling
Centerless Shift provides up to 17.4" (441 mm) of post-installation lateral shift for limitless centering
Set screws keep the mount rigid, stable and secure throughout the life of the installation
ClickConnect offers an audible click when the screen safely engages with the mount
Built-in cable stand provides easy access under the screen
A full line of accessories can be installed with the mount and the entire unit can be adjusted together
Multiple installation options for various stud distances
Exclusive nesting spacers can be stacked to achieve any depth
Quick-Store Cords use magnets to easily store and access pull cords
Improved cable management with new end caps
Integrated Security
Ships with a custom hardware kit that can be hung from mount rails if installing in stages
Easy Open box with less waste to throw away

Specifications

Certifications:	UL Listed
Color:	Black
Lateral Shift:	17.4" (441 mm)
Manual Height Adjustment:	1" (25 mm)
Minimum Depth:	2" (51 mm)
Mounting Pattern Compatibility (Universal Versions):	100 mm x 100 mm - 880 mm x 400 mm
Orientation:	Landscape
Overall Dimensions (H x W x D):	18.25 x 34.75 x 2" (464 x 883 x 51 mm)
Shipping Weight:	19.37lbs
Solution Type:	Universal
Typical Screen Sizes:	37 - 63"
Wall Stud Compatibility (inches):	16-32
Weight Capacity:	200 lbs (91 kg)

Chief LTM1U FUSION Large Micro-Adjustable Tilt TV Wall Mount

Specifications
