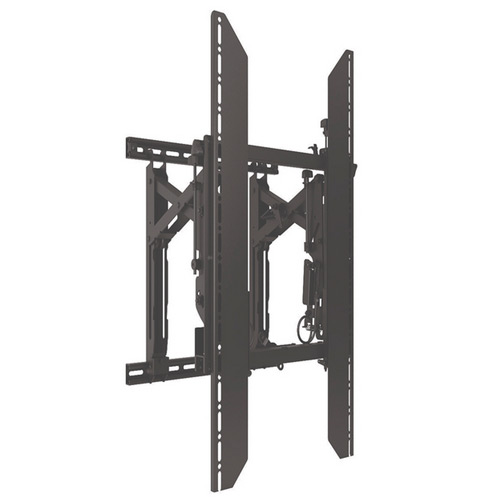

Chief LVS1UP ConnexSys Video Wall Portrait Mounting System with Rails

Write a Review

Price: $791.29

Chief LVS1UP ConnexSys Video Wall Portrait Mounting System with Rails

Manufacturer Part#: LVS1UP

Availability: Usually Ships Within 24-48 Hours

Quantity

Product Information
Product Features
Surface Description
Product Quick Links

Product Downloads

LVS1UP CAD Drawing
LVS1UP Technical Drawing
LVS1UP_LVSXUP Installation Manual

Features

SPEED

Hang units on a single strut channel for quick row leveling

No need for horizontal spacers
Vertical measurement is simply the height of the display to the next rail
Compatible with most 1-5/8" sizes of channel strut

Reduces installation time - especially for XL and recessed configurations
Tool-free ClickConnect™ latching secures displays
PowerZone™ provides 6 points of adjustment in one easy-to-access location at the top of the mount

ALIGNMENT

PowerZone™ Adjustments

Height adjustment ±1" on each interface
Tilt adjustment at single pivot point, protects displays from twisting
Depth can be set between 4" and 7.4" from the wall, providing a range of "home positions" ideal for recessed installations

Both sides adjust independently, compensating for imperfections in the wall
Walls can be out of alignment by up to 2" (horizontally)

3 levels of lateral adjustment

Mount left/right along rail
Interface left/right along mount
Lock in lateral guide for fine-tune adjustment using turn knobs, protecting screens from potential collisions

SERVICEABILITY

RapidDraw™ Display Release

Cord release system gently and remotely pops any screen out for easy access and can be extended 13.4" for service
Protects displays by not requiring an aggressive push to release/pop-out
Releases only on demand, preventing accidental pop-outs
Cord can be set up to pull for release from any 90 degree angle

Kickstand provides 20 degrees of bottom tilt access

RIGIDITY

Rigid frame keeps displays where you set them, even after extending for service
Adjustable home depth position locks screens in place to maintain alignment despite accidental bumps/pushes

MISCELLANEOUS

Security - pad lock ¼" shank diameter
Safety tested
Universal interface
Each mount comes out of the box with adjustments set in the exact same position

Specifications

Certifications:	UL Listed
Color:	Black
Manual Height Adjustment:	± 1"
Maximum Extension:	13.4" (34.0 cm)
Minimum Depth:	4"
Mounting Pattern Compatibility (Universal Versions):	200 x 100 - 800 x 400 mm
Orientation:	Portrait
Overall Dimensions (H x W x D):	32.5 x 19.5 x 4.1" (826 x 495 x 104 mm)
Shipping Weight:	42.00 lbs
Solution Type:	Universal
Tilt:	+ 4.0°, -2.5°
Typical Screen Sizes:	40 - 80"
Weight Capacity:	150 lbs (68 kg)
