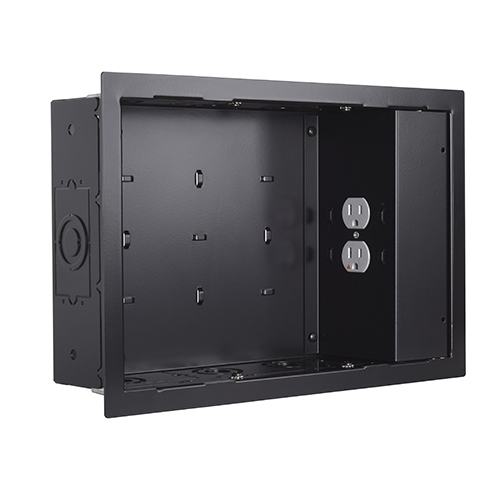

Chief PAC525FBP2 In-wall Storage Box with 2 Receptacle Filter & Surge

Write a Review

Price: $320.73

The PAC525FBP2 simplifies flat panel installation by providing an organized, recessed space for routing excess cables. The addition of the flange adds an aesthetic trimmed appearance and drywall mounting capability.Includes a high-performance, dual gang housing, isolated ground, dual receptacle outlet featuring non-sacrificial multi-stage filtration and surge protection. This protects equipment from disruptive high frequency noise and damage caused by power disturbances.

Manufacturer Part#: PAC525FBP2

Availability: Usually Ships Within 24-48 Hours

Quantity

Product Information
Product Features
Surface Description
Product Quick Links

The PAC525FBP2 simplifies flat panel installation by providing an organized, recessed space for routing excess cables. The addition of the flange adds an aesthetic trimmed appearance and drywall mounting capability. A high-performance, non-sacrificial SurgeX^® power accessory is integrated to protect AV equipment while also improving audio and video performance.

Features

Multiple depth break away edge allows compatibility with standard 3.5" studs & 2.5" studs
Pre and post construction installation options
Drywall and stud mountable
Knockouts for single gang outlets and 1-1/4", 1", & ½" conduit
Integrated universal zip tie anchor points
Landscape/Portrait installation
Stores a large variety of AV components
Paintable flange to blend in any environment
Black & white color options
Our enclosures are rated to UL2416 for use as in-wall enclosure systems.

Surge and Filter Module

Non-volatile spike protection with LED power indicator
Non-sacrificial multi-stage technology
Non-current limiting design passes full power on a regular circuit; redundant protection circuits
Improves the reliability and functionality of connected equipment by safeguarding equipment from high energy transients, lightning strikes and electronic noise events that can cause gear degradation and downtime
Line filter reduces common and differential mode noise by up to 40 dB
Rated for 125V~, 60Hz, 15 A
1875 watt maximum
Ferrite toroid based EMI Filter
Withstand rating of 240 VAC continuous without damage or loss of protection

Specifications

Certifications:	UL Listed
Color:	Black
Notes:	Output: 15A, 1875 W continuous
Overall Dimensions (H x W x D):	10.26 x 15.4 x 3.88” (261 x 391 x 98 mm)
Power Requirements:	Power Consumption: <0.5 watt Type 3 Surge Protective Device (SPD) Voltage Protection Rating (VPR): 600V L-N, N-G; 800V L-G Maximum Continuous Operating Voltage (MCOV): 240V Nominal Discharge Current (In): 3kA Short Circuit Current Rating (SCCR): 5kA Ambient Temperature Max: 40 degrees C
Shipping Weight:	11.00 lbs
Weight Capacity:	10 lbs
