Chief SYS474UB Suspended Ceiling Projector System with Storage

Write a Review

Price: $611.39

Manufacturer Part#: SYS474UB

Availability: Usually Ships Within 24-48 Hours

Quantity

Product Information
Surface Description
Product Quick Links

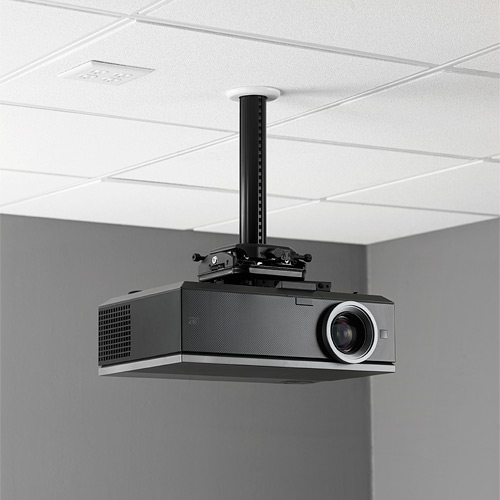

Designed for speed and flexibility from an ordering and installation standpoint. Chief's SYSAU Suspended Ceiling Projector System cuts installation time by one-third and includes everything needed to complete the majority of installations.

Features

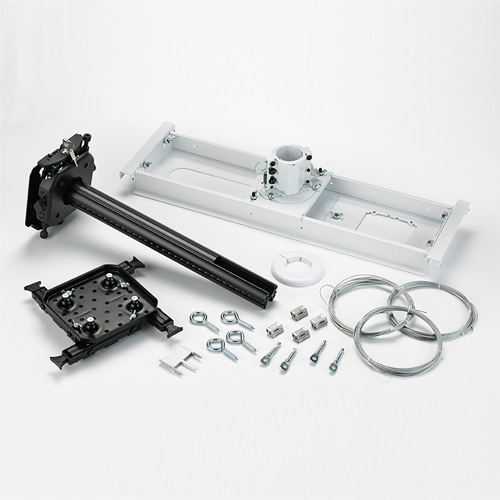

System comes out of box in the order needed with mount and column preassembled

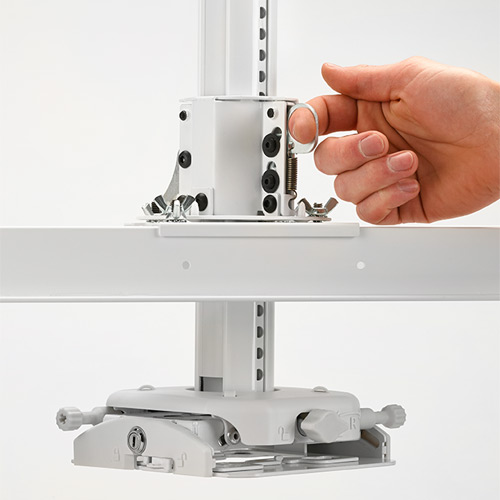

Adjustable ceiling plate allows placement above or below tile and accommodates inconsistent T-grids
- Compatible with 2' x 2', 2' x 4', 60 x 60cm, & 62.5 x 62.5cm ceiling grids
Detachable electric plate for pre-wiring
- Compatible with popular 2 gang adjustable mud rings
Tool-FreeMicrozone adjustment eliminates the need for set screws
CentrisTechnology enables effortless fingertip positioning with new tool-free lockdown
Adjustable 0-12" column with dual inlay channels for high and low voltage cables

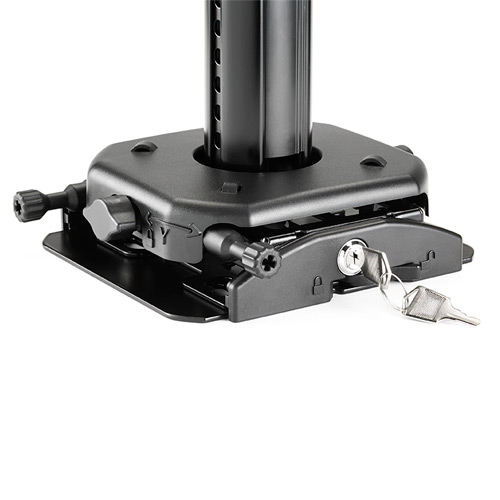

Q-Lock Quick Release Lever provides quick connect/disconnect ofthe projector for service and enhanced security with an integrated key and lock system
Improved universal interface for easier lock/unlock at projector connection

Storage Features

Plenum-rated enclosure is scalable to fit AV equipment
Shift enclosure along tile bridge to avoid plenum interferences
Removable covers enable side access in shallow plenum spaces and full access from above
Six trade size conduit knockouts in 0.5", 1", 1.5" (12, 25, 38 mm)
Flexible conduit knockouts allow high voltage conduit to pass through plenum box when the power is facing into the room below.

Specifications

Adjustments:	Roll, Pitch, Yaw (3°, 10°, 360°)
Certifications:	UL Listed
Color:	Black
Extension:	0 - 12" ( 0 - 304.8 mm)
Max Equip Size (H X W X D):	5 x 17 x 12.5" (127 x 432 x 317 mm)
Notes:	Storage: Collapsed Width 12" (305 mm); Expanded Dimensions 5.38 x 22 x 13" (137 x 559 x 330 mm)
Overall Dimensions (H x W x D):	19.82" x 7.25" x 24.94" (503.5 x 184.2 x 633.6 mm)
Shipping Weight:	40.80 lbs
Solution Type:	Universal
Weight Capacity:	35 lbs (15.9 kg)
