Chief SYSAUB Suspended Ceiling Projector System

Write a Review

Price: $474.12

Manufacturer Part#: SYSAUB

Availability: Usually Ships Within 24-48 Hours

Quantity

Product Information
Surface Description
Product Quick Links

Designed for speed and flexibility from an ordering and installation standpoint. Chief's SYSAU Suspended Ceiling Projector System cuts installation time by one-third and includes everything needed to complete the majority of installations.

Features

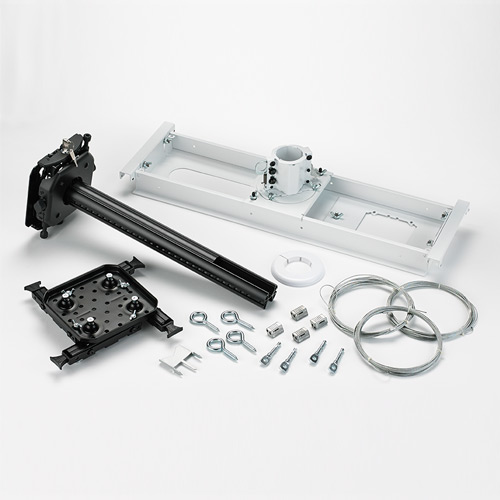

System comes out of box in the order needed with mount and column preassembled
Adjustable ceiling plate allows placement above or below tile and accommodates inconsistent T-grids

Compatible with 2' x 2', 2' x 4', 60 x 60cm, & 62.5 x 62.5cm ceiling grids

Detachable electric plate for pre-wiring

Compatible with popular 2 gang adjustable mud rings

Tool-FreeMicrozone adjustment eliminates the need for set screws
CentrisTechnology enables effortless fingertip positioning with new tool-free lockdown
Adjustable 0-12" column with dual inlay channels channels for high and low voltage cables
Q-Lock Quick Release Lever provides quick connect/disconnect ofthe projector for service and enhanced security with an integrated key and lock system
Improved universal interface for easier lock/unlock at projector connection

Specifications

Adjustments:	Roll, Pitch, Yaw (3°, 10°, 360°)
Certifications:	UL Listed
Color:	Black
Extension:	0 - 12" ( 0 - 304.8 mm)
Overall Dimensions (H x W x D):	19.82" x 7.25" x 24.94" (503.5 x 184.2 x 633.6 mm)
Shipping Weight:	19.60 lbs
Solution Type:	Universal
Weight Capacity:	35 lbs (15.9 kg)
